R-Mag Models
IT'S NEW...IT'S TOUGH...IT'S BETTER

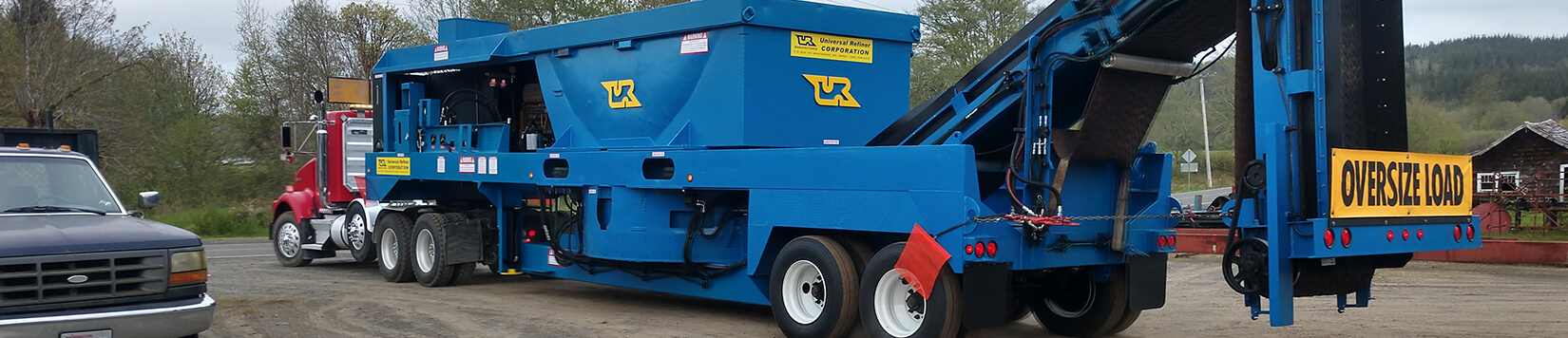

The Universal Refiner R-MAG is a portable wood waste grinder that can be used in many areas of recycling. They can easily and safely grind lawn clippings, leaves, land clearing, construction/demolition waste logging slash, stumps, log yard waste, railroad ties, storm waste, tropical (palm and palmetto) waste etc.
We believe that one of the most important factors in our design is simplicity. If you examine any of the R-MAG models you will see that the design and construction is such that they are nearly indestructible. By comparison most of the tub grinders and horizontal feed machines on the market become worn or damaged beyond repair within a few years...
Many of our earlier Contender models have over 25,000 hours on them and run like new. Our goal with the R-MAG models is to see 30,000 to 40,000 hours. You can help us with this!
Models
R-MAG 82
(PDR-82-600HP)
This model is based on the foot print of the PDR-70 contender, but is built heavier, has a larger hopper and infeed and other improvements. It has abilities similar to the earlier PDR-80 Contender models, but at a lower cost. Machine is street legal!
R-MAG 92
(PDR92-672HP)
This model is based on the foot print of the PDR-80 Contender, but is larger, built heavier and stronger, has more pan power (two additional drive motors) a larger hopper and infeed and other improvements. It has abilities similar to the earlier PDR-96 Contender models, but it is also street legal and lower in cost.
R-MAG 109
(PDR-109-800HP)
This model is based on the foot print of the PDR-96 Contender, but is larger, stronger, has a larger hopper and infeed and is more productive than anything we have ever built. It is 10' wide and requires permits.
Specs
R-Mag 82
Engine
520 HP
Width
100 INCHES
Height
13' 4"
Length
37 FEET
Weight
50,000 LBS
Hyd. Tank
150 GALLON
Water Tank
150 GALLON
Fuel Tank
350 GALLON
Hopper Size
160" x 100" x 76"
Hopper Capacity
19 CUBIC YD
Conveyor Discharge
30" x 21'
Typical Production
UP TO 80 TPH
Pan
Base Diameter
80 INCHES
Wall Thickness
1/2 INCH
Floor Thickness
3/4 INCH
Pan Drive
Cushioned Hyd; Hydraulic; Radio Remote Auto Reverse
Screens
Size
1 1/2 - 6 INCH
Area
3800 SQ IN
Warranty
1 YEAR
Cutting Mill
Rotor Diameter
45 INCHES
Cutting Width
40 INCHES
Rotor RPM
782
Blade Holders (Hammer)
10
Blade Holder Warranty
1 YEAR
Cutter Mill Drive
Fluid Coupling & URC Heavy Duty Drive (Kevlar)
R-Mag 92
Engine
672-800 HP
Width
100 INCHES
Height
13' 4"
Length
42 FEET
Weight
60,000 LBS
Hyd. Tank
150 GALLON
Water Tank
150 GALLON
Fuel Tank
250 GALLON
Hopper Size
160" x 100" x 86"
Hopper Capacity
21 CUBIC YD
Conveyor Discharge
30" x 21'
Typical Production
UP TO 100 TPH
Pan
Base Diameter
90 INCHES
Wall Thickness
1/2 INCH
Floor Thickness
3/4 INCH
Pan Drive
Cushioned Hyd; Hydraulic; Radio Remote Auto Reverse
Screens
Size
1 1/2 - 6 INCH
Area
4800 SQ IN
Warranty
1 YEAR
Cutting Mill
Rotor Diameter
55 INCHES
Cutting Width
45 INCHES
Rotor RPM
672
Blade Holders (Hammer)
14
Blade Holder Warranty
1 YEAR
Cutter Mill Drive
Fluid Coupling & URC Heavy Duty Drive (Kevlar)
R-Mag 109
Engine
800-1150 HP
Width
10 FEET
Height
13' 4"
Length
46 FEET
Weight
82,000 LBS
Hyd. Tank
150 GALLON
Water Tank
150 GALLON
Fuel Tank
300 GALLON
Hopper Size
14' x 10' x 9'
Hopper Capacity
31 CUBIC YD
Conveyor Discharge
42" x 21'
Typical Production
UP TO 120+ TPH
Pan
Base Diameter
108 INCHES
Wall Thickness
5/8 INCH
Floor Thickness
3/4 INCH
Pan Drive
Cushioned Hyd; Hydraulic; Radio Remote Auto Reverse
Screens
Size
1 1/2 - 6 INCH
Area
6870 SQ IN
Warranty
1 YEAR
Cutting Mill
Rotor Diameter
65 INCHES
Cutting Width
54 INCHES
Rotor RPM
588
Blade Holders (Hammer)
18
Blade Holder Warranty
1 YEAR
Cutter Mill Drive
Fluid Coupling & URC Heavy Duty Drive (Kevlar)
