TDR-90 H.A.W.G.

Not A Tub! Not A Horizontal! Not A Rotary Shredder! It's Better!

Grinds stumps and chunks up to 80" diameter x 5000 pounds and can be fed with a bobcat or farm tractor & bucket.

The H.A.W.G. is unbelievably simple, durable and fast, yet it will grind almost anything and make a finished product in just one pass...even pulp chips.

Infinitely Adjustable Gate allows particle size adjustment on the fly!!

Is Ideal for Grinding

Asphalt Shingles
Green Waste
Stumps
Tropical Waste (Palm & Palmetto)
Construction Waste
Difficult/Dirty Material

Models

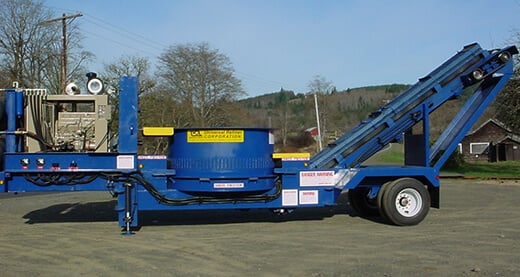

TDR-90 Vixen H.A.W.G.

1 axle unit with 275HP C7 CAT engine with infinite particle size control exit gate. Comes with a stub conveyor or with standard discharge conveyor and magnetic head pulley.

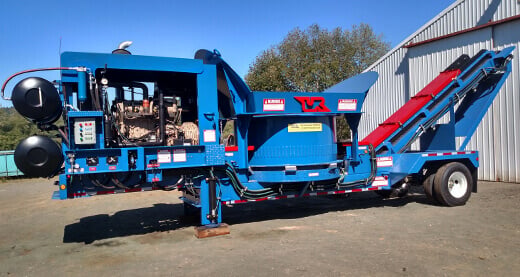

TDR-90 Rascal H.A.W.G.

1 axle unit with 520HP C9 CAT engine with infinite particle size control exit gate, standard discharge conveyor and magnetic head pulley.

Specs

RASCAL H.A.W.G.

Engine

275-520 HP

Width

102 INCHES

Height

13' 4"

Length

37 FEET

Weight

36,000 LBS

Hyd. Tank

150 GALLON

Fuel Tank

150 GALLON

Hopper Size

102" DIAMETER

Hopper Capacity

7 CUBIC YD

Conveyor Discharge

30" x 21'

Typical Production

UP TO 45 TPH

Pan

Base Diameter

90 INCHES

Wall Thickness

1/2 INCH

Floor Thickness

5/8 INCH

Pan Drive

VARIABLE SPEED HYDRAULIC

Screens
EXIT GATE (INFINITE SIZING CONTROL)

Cutting Mill

Rotor Diameter

45 INCHES

Cutting Width

45 INCHES

Rotor RPM

616

Blade Holders (Hammer)

Blade Holder Warranty

1 YEAR

Cutter Mill Drive

URC HEAVY DUTY DRIVE (KEVLAR)
